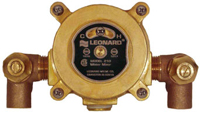

Bi-metal 210 Lead Free Master Mixing Valve
LF Thermostatic Mixing Valve - 210-LF-F
ECO-MIX ™
Thermostatic water mixing valve, DURA-trol® solid bimetal thermostat directly linked to valve porting to control the intake of hot and cold water and compensate for supply temperature or pressure fluctuations. DURA-trol® is highly responsive and cannot be damaged by extremes in temperature. 1/2” Sweat inlets and outlet, 0.5 GPM (1.9 l/m) minimum flow capacity. Integral combination checkstops, Internal parts of lead free bronze, lead free brass, and stainless steel, Integral wall support, Temperature selector dial, HOT-COLD with directional indicators, Maximum operating pressure 125 PSI (860 KPA), Adjustable high temperature limit stop set for 110º F (49º C
Repair Kits
Valve Repair Kit – KIT R/210
Check Repair Kit – KIT SEE O&M
Downloads
Specification
| Inlets | 1/2" |
| Maximum Flow(GPM) | 9 |
| Minimum Flow(GPM) | 0.5 |
| Outlet | 1/2" |
| Overall Depth | 3.5" |
| Overall Height | 5" |
| Overall Width | 7" |
Options
| Baked White Exposed Cabinet | BWE-EXP |
| Baked White Recessed Cabinet | BWE-REC |
| Mounting Bracket | BRKT |
| Separate (loose) color coded Dial Thermometer | 37C |
| Stainless Steel Exposed Cabinet | STSTL-EXP |
| Stainless Steel Recessed Cabinet | STSTL-REC |
| Top Inlets | TOP |
