Megatron Proton Electronic Mixing Valves - PNV-150-LF-M

Complete Digital Water Temperature Control System with Optional Remote Monitoring

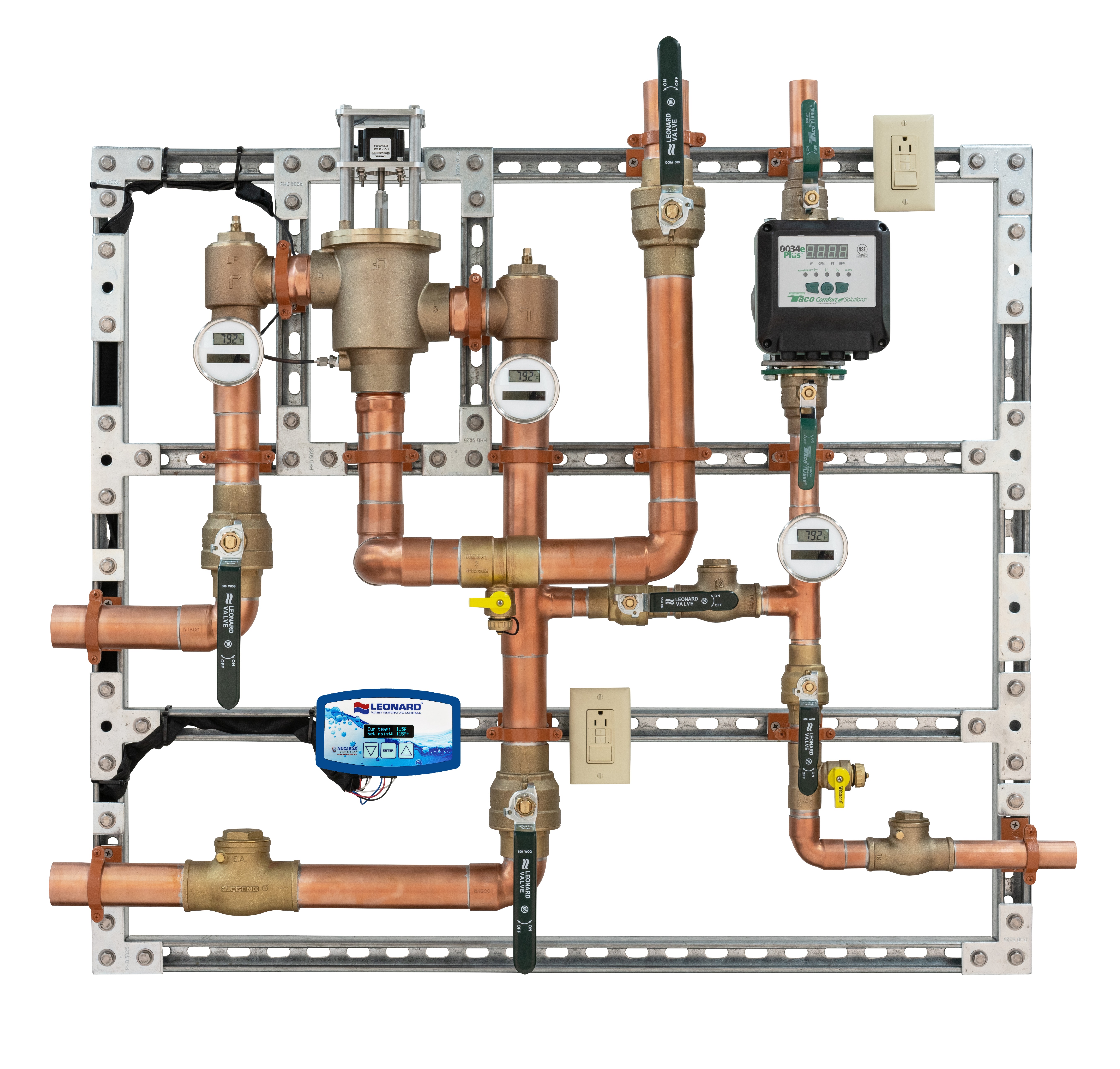

Megatron Proton Electronic Mixing Valves - PNV-150-LF-M

•    Digital Mixing Valve with 1-1/4” inlet angled check  stops, 1-1/2” Outlet and integral RTD Sensor

•    1-1/4" NPT inlets, 1-1/2" NPT outlet (32mm X 38mm)

•    0.25 GPM** (0.95 L/min) minimum flow capacity

•    Maximum operating pressure: 125 PSIG (869 KPA)

•    Controls water temperature to ± 2°F in accordance with ASSE 1017

•    Controls water temperature to ± 2°F during times of low / no

system demand

•    Automatic Hot/Cold Water shutoff upon cold/ hot water inlet supply failure

•    User programmable set point range between 65°F and 180°F

•    UL Listed Control Box

•    UL Listed 120V plug in power supply with 6’ cord

•    Simple and intuitive user commissioning and setup

•    Factory assembled and tested



Add To Favorites

Downloads

• Full Text Article (pdf only) - Proton Operation and Maintenance Manual.pdf
• Submittal Data Sheet - S-PNV-150-LF-M.pdf
• Product Specification - Megatron® PNV-150-LF SPEC.pdf
• REVIT Drawing - Proton Megatron 1.5" Digital Water Tempering Solutions System.rfa
• BIMobject Page Link - Revit

Specification

Inlets	1 1/4"
Minimum Flow(GPM)	.25
Outlet	1 1/2"

Options

Back up Power Supply up to two hours in case of power loss	BPS
Internet of Things-Modbus to WiFi gateway to cloud	IOT
