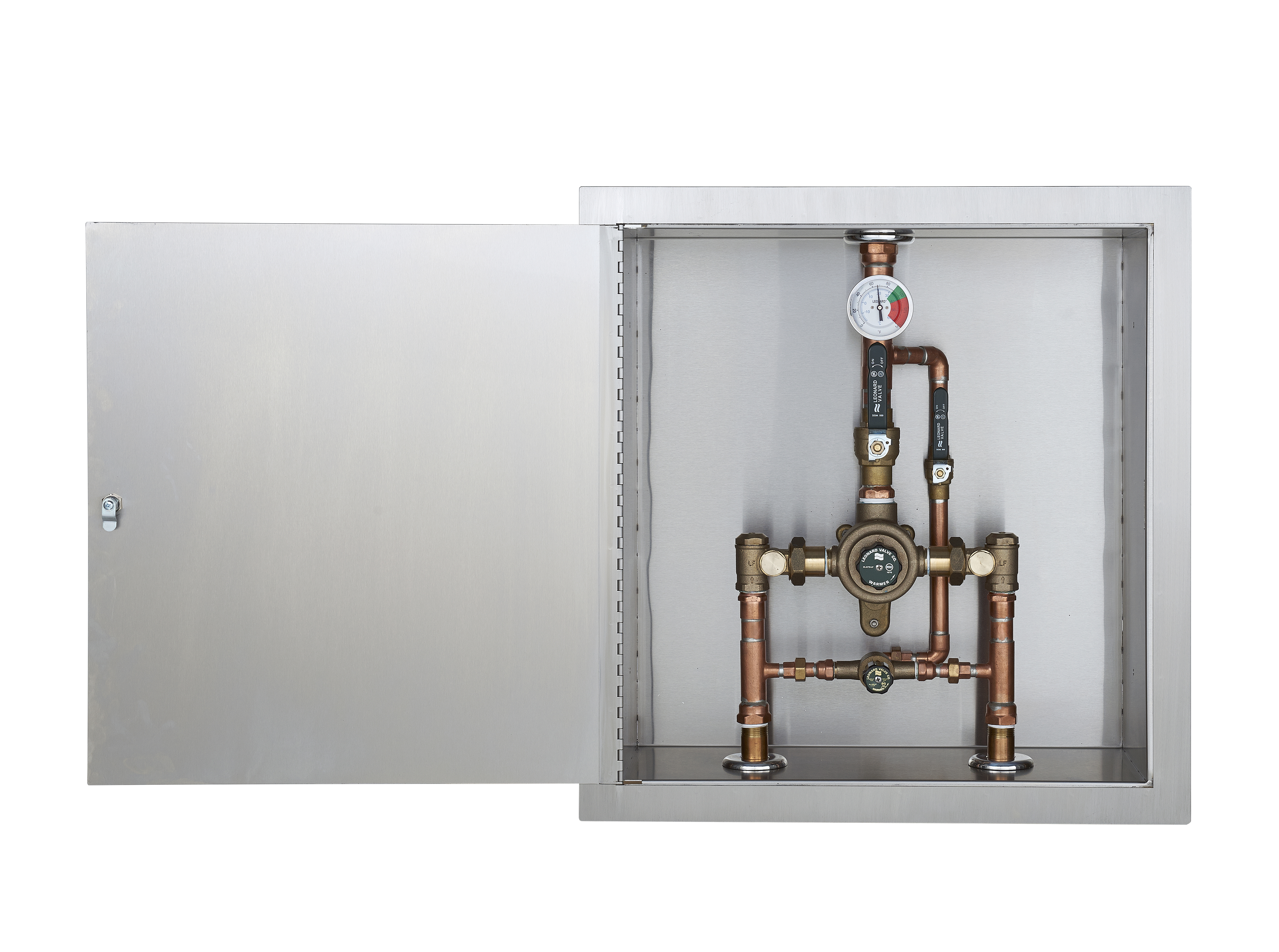

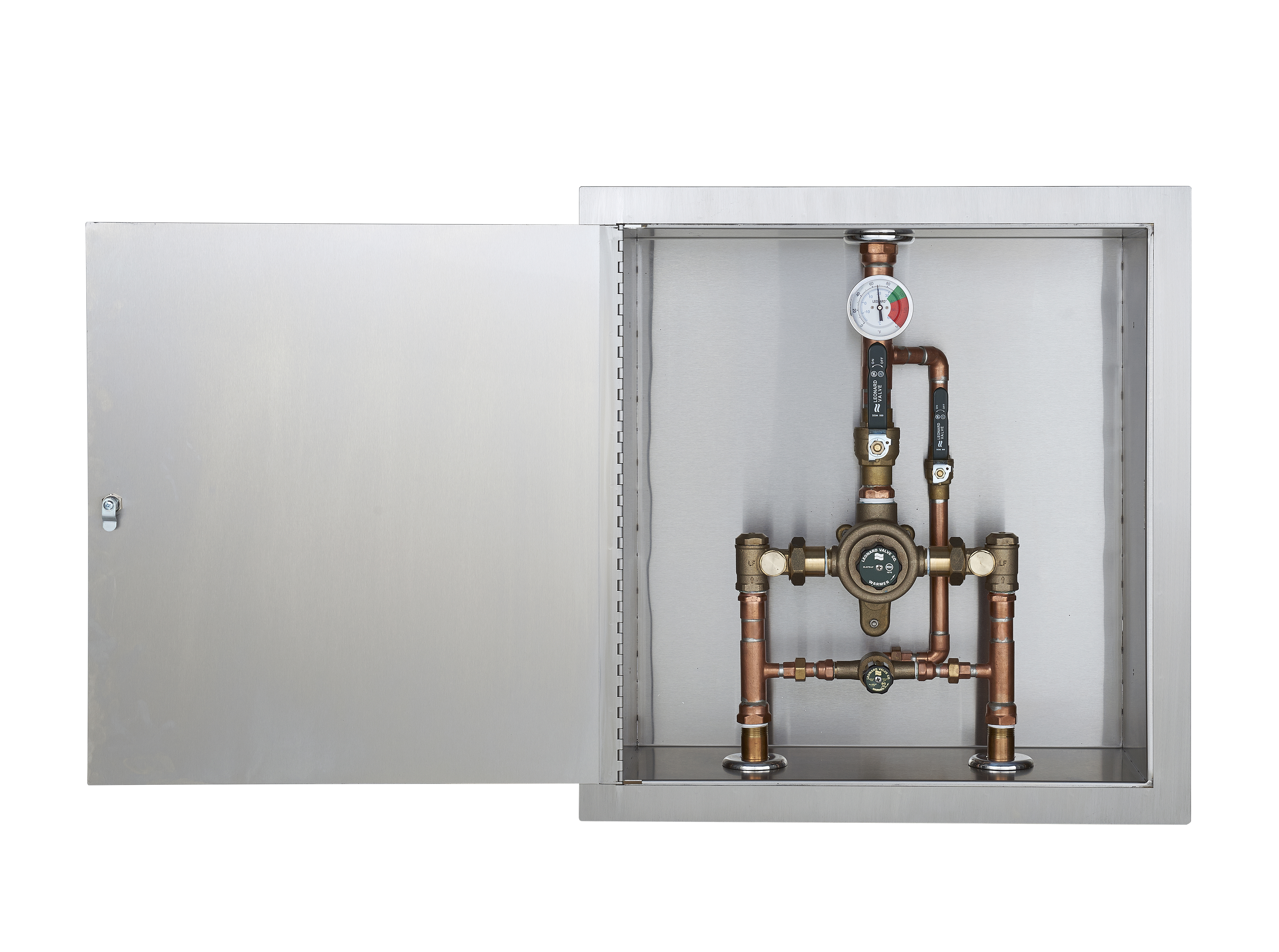

Paraffin Wax Technology Master Mixing Valve with Cabinet Assembly
LF Thermostatic Mixing Valve - XL-186-690-LF-STSTL-REC
Eco Mix
High Low Thermostatic Water Mixing Valve with 0.5 GPM (1.9 l/min) minimum flow capacity, 1 GPM (3.8 l/min) to ASSE 1069 1” inlets, 1-1/4” outlet (25mm x 32 mm) Adjustable high temperature limit stop set for 120ºF (49ºC) Combination checkstops, unions, strainers on inlets wall support, Outlet volume control / shutoff, Color coded dial thermometer (0 to140ºF, -10º to 60ºC) Temperature adjustment range, 90-140 ºF (32-60 ºC) Bottom inlets, top outlet Factory assembled and tested.
This product is certified to meet Low Lead requirements of wetted surface area containing less than 0.25% lead by weight
Repair Kits
LARGE VALVE REPAIR KIT - KIT R/XL82
LARGE VALVE CHECK REPAIR KIT - KIT 2/690
SMALL VALVE REPAIR KIT - KIT R/269
SMALL VALVE CHECK REPAIR KIT - SEE O&M
LARGE VALVE CHECK REPAIR KIT - KIT 2/690
SMALL VALVE REPAIR KIT - KIT R/269
SMALL VALVE CHECK REPAIR KIT - SEE O&M
Downloads
Specification
| Inlets | 1" |
| Maximum Flow(GPM) | 65 |
| Minimum Flow(GPM) | 1 |
| Outlet | 1 1/4" |
| Overall Depth | 9" |
| Overall Height | 26" |
| Overall Width | 24" |
Options
| Baked White Exposed Cabinet | BWE-EXP |
| Baked White Recessed Cabinet | BWE-REC |
| Right Hand Hinge | RHH |
| Stainless Steel Exposed Cabinet | STSTL-EXP |
