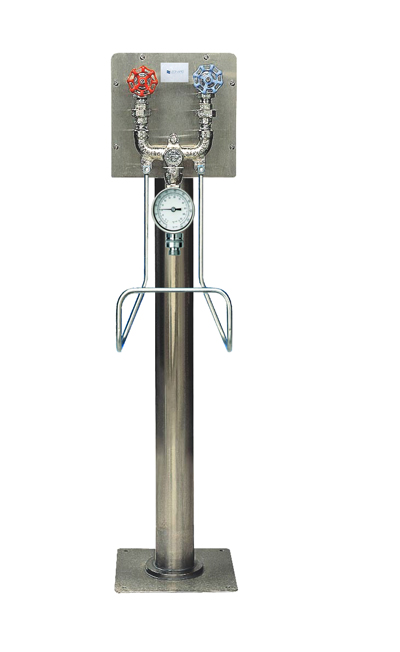

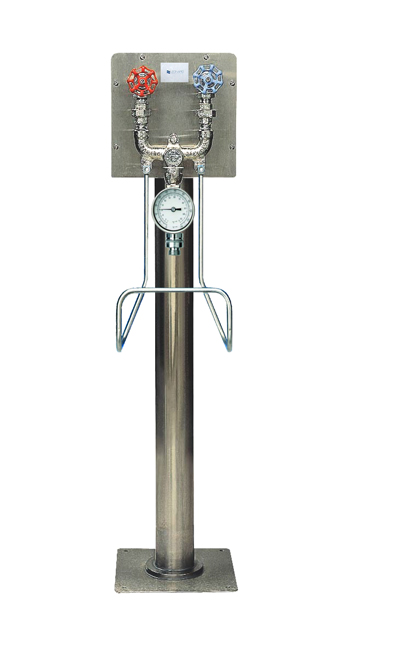

Floor Mounted Pedestal Unit
Floor Mounted Pedestal Unit - SW-75-PVBD-LF
· Two stop and check valves with color coded heat
resistant handles on inlets, (internal parts of stainless steel construction)
· Mixing chamber with steam jet, (stainless steel)for steam and water or hot and cold water mixing
· Integral wall support
· 3/4" outlet with dial thermometer (20 to 240ºF, -5 to 115ºC)
· Backflow preventer with hose connection
· Chrome plated finish
· Stainless steel hose rack
· 80 PSI (5.5 bar) maximum operating steam pressure
· 125 PSI (8.6 bar) maximum operating water pressure
· Third Party Verified as Lead Free
Downloads
Specification
| Inlets | 3/4" |
| Maximum Flow(GPM) | 9 |
| Outlet | 3/4" |
| Overall Height | 51" |
| Overall Width | 12" |
